Descrizione
The AVS-SWB1331 is an ultra-thin bi-directional 3×1/1×3 HDMI2.0 switcher with 4 HDMI ports. The switcher supports HDMI resolutions up to 4K@60Hz 4:4:4.
Features AVS HDMI 2.0 Bi-directional Switcher
- Supports HDMI2.0 4k@60Hz 4:4:4
- HDCP2.2 compliant
- Supports bi-directional switching
- Supports HDR
- Supports Hot-Plug detection.
- No need of external power supply.
- Supports smart EDID management.
Package Contents of AVS HDMI 2.0 Bi-directional Switcher
- 1 x AVS-SWB1331
- 1 x Velcro Tape
- 1 x User Manual
Panel Description HDMI 2.0 Bi-directional Switcher
① SWITCH: Press this button to switch 1-HDMI, 2-HDMI, or 3-HDMI as input or output.
② IIN/OUT: Press this button to select the HDMI(③) as input or output.MI, 2-HDMI, or 3-HDMI as input or output.
③ HDMI: Connect with HDMI source or display.
④ IN: Illuminates blue when the HDMI port(③) is selected as input.
⑤ OUT: Illuminates blue when the HDMI port(③) is selected as output.
⑥ 1/2/3-Signal LED: Illuminates blue when the corresponding source or display is selected.

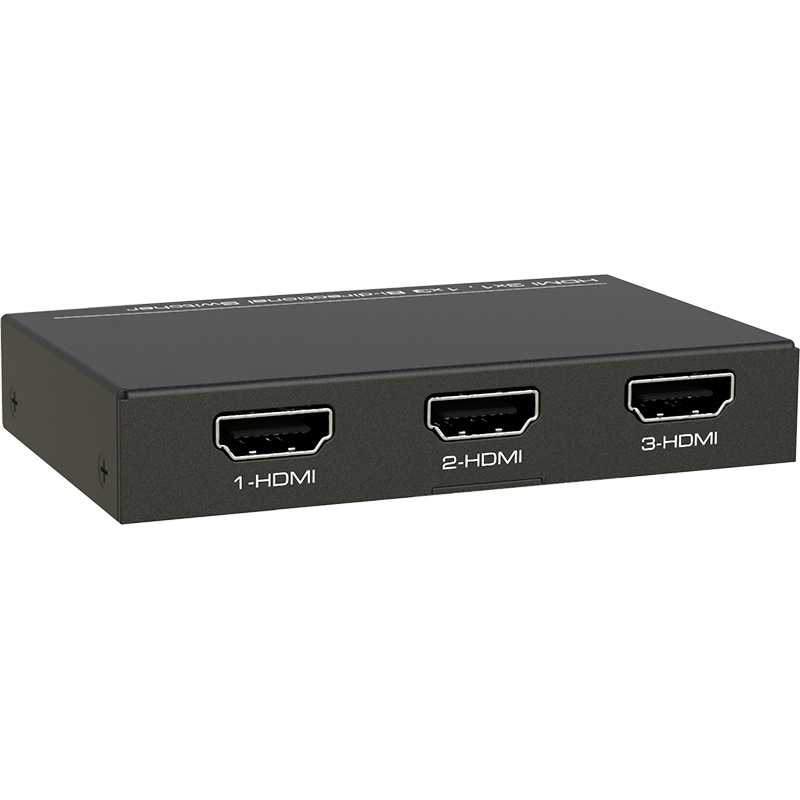

⑦ 1/2/3-HDMI: 3 HDMI ports, connect with sources or displays.
Specifications AVS HDMI 2.0 Bi-directional Switcher
Input & Output | (4) HDMI |
Connector | (1) 19-pin type-A female HDMI |
General | |
Resolution | Up to 4Kx2K@60Hz 4:4:4 |
HDMI Standard | HDMI 2.0 |
HDCP Compliance | HDCP 2.2 pass-through |
EDID Management | Built-in EDID |
Power Consumption | 4W (Max) |
Operation Temperature | -10~40℃ |
Storage Temperature | -15~55℃ |
Relative Humility | 10%-90% |
Dimensions (W*H*D) | 80mm x 16mm x55mm |
Net Weight | 131g |
