HDCP Converter 2.2 to 1.4 – AVS
The Audio visual Solutions AVS C2214 is an ultra-thin HDMI signal manager. It is designed to enhance the compatibility between HDMI sources and displays to match more display device. The transmission of 4k×2k@60Hz (max) signal from source to display is up to 15m. Beside straight-through HDMI transmission, the EDID bypass function ensures the best resolution of displays. No need of any external power supply, simplifying the installation and operation.
Audio visual Solutions AVS C2214 Feature
- Input supports HDCP2.2.
- Supports EDID bypass and auto input resolution detection, make sure the best resolution of display device.
- The transmission of 4k@60Hz 4:2:0 signal from source to display is up to 15m.
- No need of any external power supply, simplifying the installation and operation.

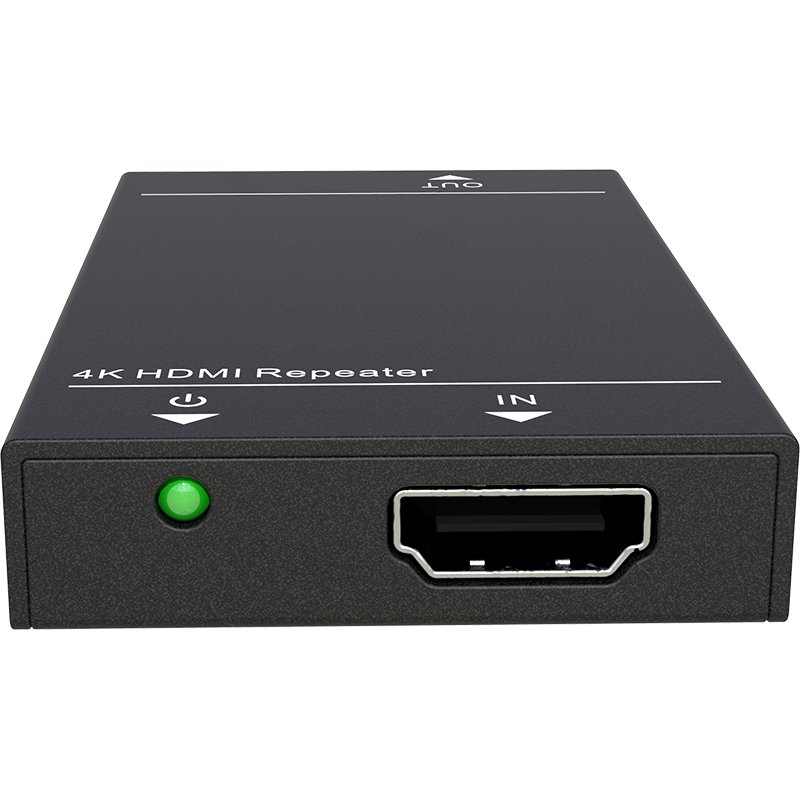

PANEL DESCRIPTION
① Power LED: GREEN when powered on
② IN: Connect with HDMI source
③ OUT: Connect with HDMI display
AVS C2214 System Diagram
Audio visual Solutions AVS C2214Package Content
- 1 x AVS-C2214
- 1 x Velcro Tape
- 1 x User Manual
Specification
Input & Output | |
Input | (1) HDMI |
Input Connector | (1) 19-pin type-A female HDMI |
Output | (1) HDMI |
Output Connector | (1) 19-pin type-A female HDMI |
General | |
Transmission Distance | Input≤10m; Output≤5m |
HDCP Standard | Input supports HDCP2.2 |
EDID Management | EDID pass-through |
Bandwidth | 10.2Gbps |
Power Consumption | 1W |
Work Temperature | -10~55℃ |
Relative Humility | 10%-90% |
Dimensions (W*H*D) | 45.5mm x 12mm x 75mm |
Weight | 50g |
