Hdfury Vertex 2
Hdfury Vertex 2 Hardware-wise

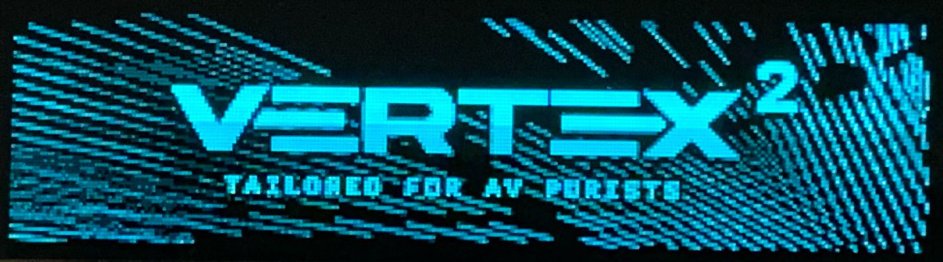

the Vertex² central is featuring 4 HDMI inputs, 2 HDMI video output with scaling option, and 1 dedicated HDMI full audio output at 720p or 1080p, LAN Control, RS232, L/R stereo or Optical 5.1 output, IR RX, IR sensor, IR window, OLED display and 4 buttons on the side allowing to enter/exit and perform a change in the device system menu. Vertex² offers unique and exclusive output management to accommodate Android TV and such sink devices that perform annoying check-in standby mode.
All inputs are capable of 4K HDR/HLG/DV/LLDV/HDR10+ up to 18Gbps for video and support any sound format in existence today, HDMI TX0 and TX1 video outputs are capable of outputting 18Gbps and all sound formats as well.
Vertex² is always running in a Matrix/Scaler mode ensuring your setup remains optimized at its best capabilities.
Hdfury Vertex 2 Software-wise
Vertex² provides you full control via the embedded and brand new HDfury webserver! The need for a dedicated computer with a special driver to run configuration software or update is now a thing of the past!
You can use any web browser based device such as any computer or smartphone to access, control, and update Vertex² Central, the process is as easy as visiting a web page.
We went further than anything we ever made and full filled Vertex² with revisited and improved HDR management features. We also added some new features never seen before such as TMDS switching for all inputs which allow auto-switch sources such as ATV4K, X1X, or Shield that no other switch on the market are able to auto-switch. Additionally, Vertex² can physically cut any output via a software trigger.
World First eARC HDMI2.1 breakthrough:
Vertex² now supports ARC and eARC sound extraction from TV for up to Atmos high bit rate over TrueHD forwarded to any AVR input via Vertex² HDMI audio output (ARC-Key feature) !
All HDfury legacy features remain present, each input EDID can be set individually from a list of 100 EDID, HDCP conversion, Scaling, and signal operations such as Chroma/Color depth/Color space, PJ&Display macro, Infoframes modes, CEC command, ARC, HTPC mode, special modes, sound extraction and more.

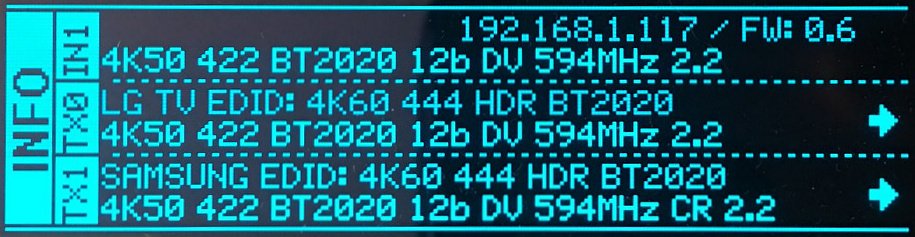

All setup information is visible at first sight via OLED, On-Screen Display, or Webserver.
Vertex² is the smart solution and converter for interoperability between any HDMI revision equipment, for content creators, calibrators, streamers, digital entertainment centers, UHDTV retail, show sites, data centers, schools, conference or home cinema, and much more.
HdfuryVertex 2 Technical specs
|HDMI REVISION:||HDMI 2.0b (Level A) 600Mcsc – 18Gbps|
|VERTEX² SUPPORT:||600MHz/18Gbps HDR, HDR10+, HLG, DV & LLDV, eARC|
|MAX RESOLUTION:||4K60 4:4:4 8b, 4K60 4:2:2 12b, 4K120 4:2:0 8b or 8K30 4:2:0 8b|

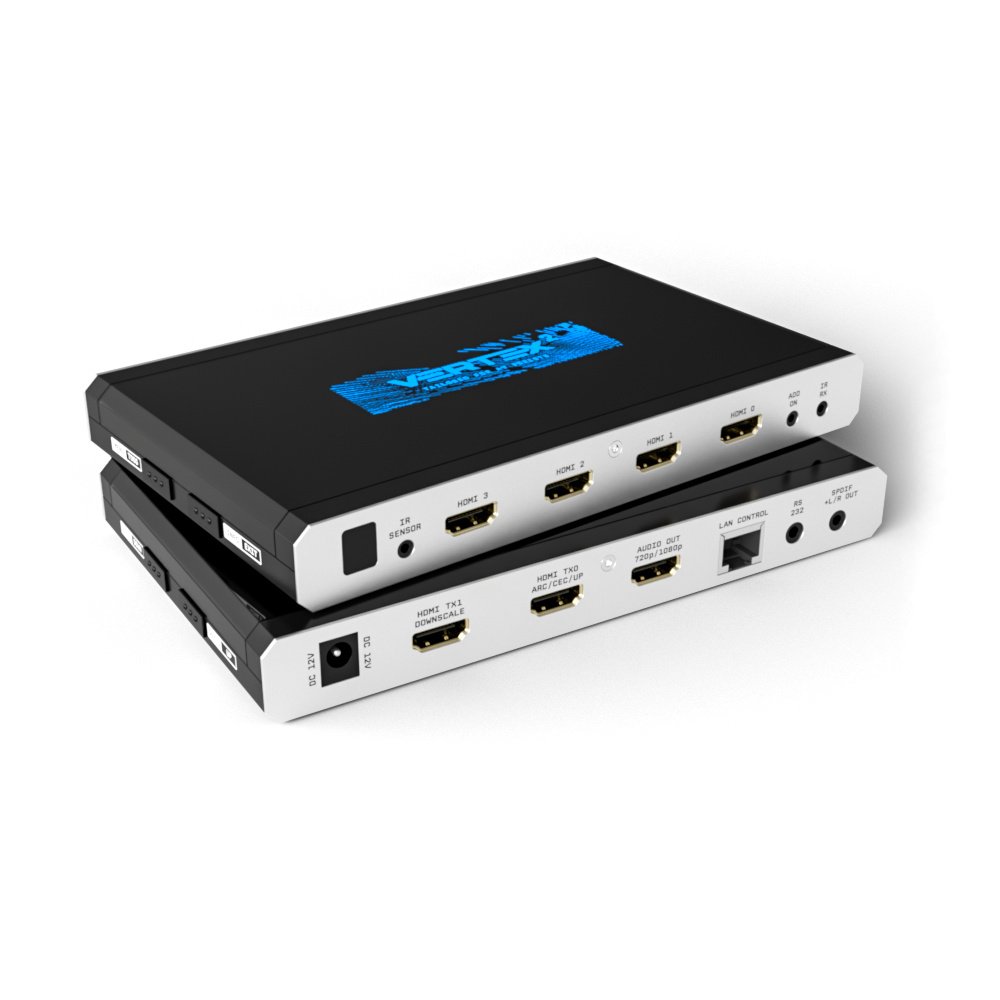

|TOTAL I/O:||4 HDMI In, 3 HDMI Out, 1 RJ45, 2 IR, 1 RS232, 1 Analog Jack & Optical Out.|
|UPSCALE PORT TX0:||FHD 1080p & 2K to UHD 2160p & 4K/DCI|
|DOWNSCALE PORT TX1:||UHD/HDR 2160p & 4K/DCI to FHD/HDR 1080p & 2K|
|FULL AUDIO PORT:||Full HDMI/ARC/eARC Audio extraction via 720p/1080p self generated stream to feed any AVR input|
|TMDS SWITCHING:||Autoswitch support for ATV4K, X1X, and others sources continuously sending +5V|
|SIGNAL CONVERSION:||Resolution, Chroma Subsampling, Color Space, Color Depth, HDCP|
|HDCP CONVERSION:||Any HDCP to any HDCP with CST1 support|
|OPERATING MODES:||18Gbps Matrix, Scaler, Splitter & Switcher with CEC, eARC, ARC, and EDID management|
|SPECIAL MODES:||CEC Command, HTPC, Disable or replace HDR/HLG, HDMI Doctor, RS232 Macro.|
|EDID MODES:||13 EDID Flags, 5 EDID Algo, 100 EDID Banks (10 custom)|
|INFOFRAME MODES:||Capture, edit, create, block or replace HDR/HLG metadata, AVI & VSIF.|
Read SPD, Audio, HDMI Vendor, HDMI Forum
|CONTROL MODES:||New HDfury Webserver, IR, IP, RS232 for Linux/MAC/Win or push buttons|
|OUTPUT CONTROL:||Fully disconnect any output via software when not in use.|
|ON-SCREEN DISPLAY:||Editable with custom text and mask. (cover TV channel logo)|
|OLED:||3.12″ Diagonal, 256×64, 16 blue colors|
|VERTEX² DIMENSION:||4.5″L x 7.3″W x 0.9″H – in CM: 11.5 x 18.5 x 2.4|
|WEIGHT:||520g – 1.15 LBS|
|INPUT LAG:||<1ms (nanoseconds count)|
|OTHER INFO:||3D Support, CEC Pass-Through, DSD, eARC (HDMI2.1)|
4×2 Splitter/Switcher/Scaler up to 4K60 4:4:4 600MHz 18Gbps + HDMI audio out
Splitting any signal up to 4K60 4:4:4 600MHz signal is now a reality, thanx to IR/RS232/push buttons or Web server, you can easily switch between 4 inputs that will be replicated up to 2 outputs for video and 3 outputs for audio (one UHD / one UHD/FHD + HDMI Audio out). HDCP conversion and scaling rules are autoconfigured and applied on the fly in order to always output the type of video signal and HDCP encryption that your display or sink device is expecting.
4×2 Matrix up to 4K60 4:4:4 600MHz 18Gbps + HDMI audio out
Matrix solution is available for HDMI stream up to 4K60 4:4:4 8b, 4K60 4:2:2 12b, 4K120 4:2:0 8b or 8K30 4:2:0 8b. Process two 18Gbps signals at the same time from 2 sources to 2 sinks devices and have one of the channel duplicated and converted in res/HDCP/chroma/color depth/color space/etc to 1080p + a third output with HDMI audio out.
you can also check our Hdfury Diva for the solution you looking for.
