HDMI 2.0 BOOSTER – AVS

25.00

The AVS-BH220M is an HDMI 2.0 booster designed to extend 4k×2k@60Hz 4:4:4 signal up to 20m, and 4k×2k@30Hz signal up to 35m over HDMI2.0 cables, being powered by HDMI source, and the HDMI cables should support 18Gbps.

98 disponibili

COD: AVS-BH220M Categorie: , ,

Descrizione

 AVS HDMI 2.0 Booster -AVS

The Audio Visual Solutions AVS-BH220M is an HDMI 2.0 booster designed to extend 4k×2k@60Hz 4:4:4 signal up to 20m, and 4k×2k@30Hz signal up to 35m over HDMI2.0 cables, being powered by HDMI source, and the HDMI cables should support 18Gbps.

Feature

  • Supports HDMI2.0, HDCP2.2 compliant.
  • The total transmission distance of 4k@60Hz 4:4:4 signal is up to 20m, and the maximum distance from HDMI output to display supports 10m.
  • The total transmission distance of 4k@30Hz signal is up to 35m, and the maximum distance from HDMI output to display supports 15m.
  • The total transmission distance of 1080p signal is up to 50m, and the maximum distance from HDMI output to display supports 30m.
  • No need of any external power supply, simplifying the installation and operation.

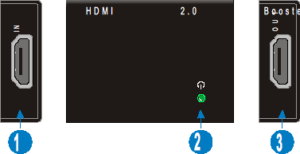

Panel Description

① INPUT: Connect with HDMI source

② Power LED: GREEN when powered on

③ OUTPUT: Connect with HDMI display

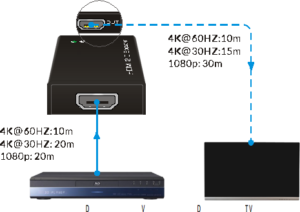

System Diagram

Package Content

  • 1 x AVS-BH220M
  • 1 x Velcro Tape
  • 1 x Audio visual solutions AVS-BH220M User Manual

Specifications Audio Visual Solutions AVS BH220M

Input & Output

Input

(1) HDMI

Input Connector

(1) 19-pin type-A female HDMI

Output

(1) HDMI

Output Connector

(1) 19-pin type-A female HDMI

General

Transmission Distance

4Kx2K@60Hz 4:4:4≤ 20m;

4Kx2K@30Hz 4:4:4≤ 35m;

1080p≤ 50m

HDMI Standard

HDMI2.0

HDCP Standard

Input supports HDCP2.2

Bandwidth

18Gbps

Work Temperature

0~40℃

Storage Temperature

-10~55℃

Relative Humility

10%-90%

Dimensions (W*H*D)

35.5mm x 12 mm x 49 mm

Weight

52g



After-Sales Service



We provide limited warranty for the product within three years.
