HDMI Extender over Cat5e/6 1080p AVS-EXT60
The AVS-EXT60 HDMI extender extends HDMI signal between Transmitter and Receiver over CATx cable. It supports 1080p@60Hz video signals up to 55m including embedded multi-channel audio and HDCP1.4.
Built-in EDID make this product compatible with most display and source device, to ensure HDMI transmission.
Advanced power design (PoC) allows this product to be powered at Transmitter, and only one power supply is required. In addition, the AVS-EXT60 send/receive IR signals each other over the same CATx cable with IR pass through.
Features
- Supports HDMI1.4, HDCP1.4 compliant.
- Supports built-in EDID to ensure HDMI signals transmission from source to display.
- The transmission of 1080p@60Hz (max) signal is up to 55m.
- Supports bidirectional IR pass-through.
- Supports PoC, the Receiver can be powered via Transmitter.
Package Contents
- 1 x AVS-EXT60T
- 1 x AVS-EXT60R
- 1 x Power Adaptor (5VDC 1A)
- 2 x Velcro Tape
- 1 x IR Receiver (5V)
- 1 x IR Emitter (5V)
- 1 x User Manual
Panel Description
Transmitter (TX)
① CAT OUT: RJ45 connector with Green& Yellow indicators. Connect to Receiver over CATx cable.
The Green indicator lights up when powered on.
The Yellow indicator lights up when linked successfully between Transmitter and Receiver.
② IR IN: Connect with IR Receiver.
③ IR OUT: Connect with IR Emitter.
④ DC 5V: Micro USB, connect to the power adaptor.
⑤ HDMI IN: Connect to HDMI source.
⑥ HDMI OUT: HDMI loop output, connect to display.
⑦ RESET: Reboot.

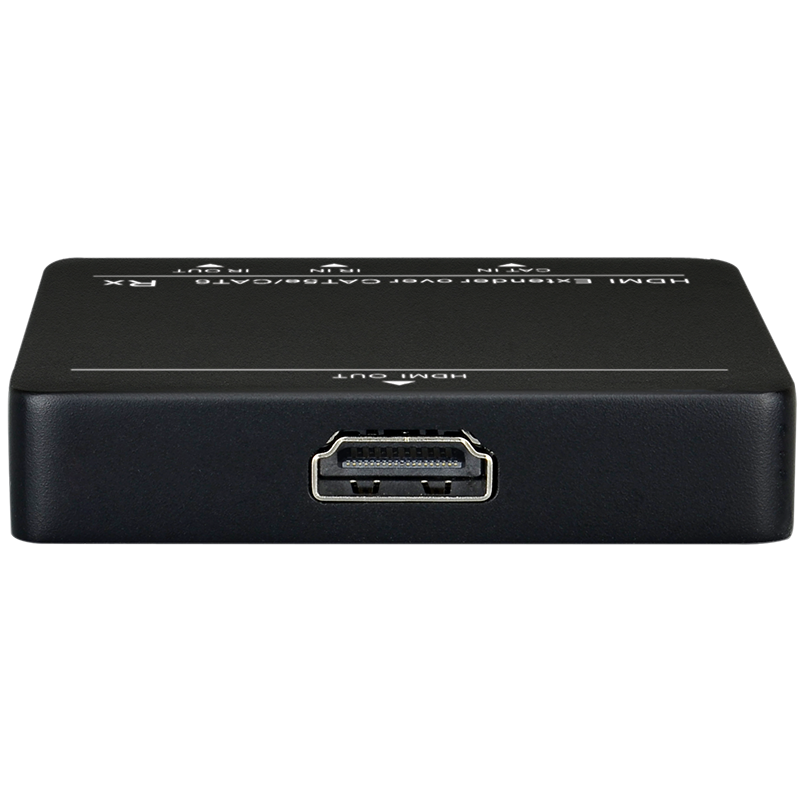

Receiver (RX)

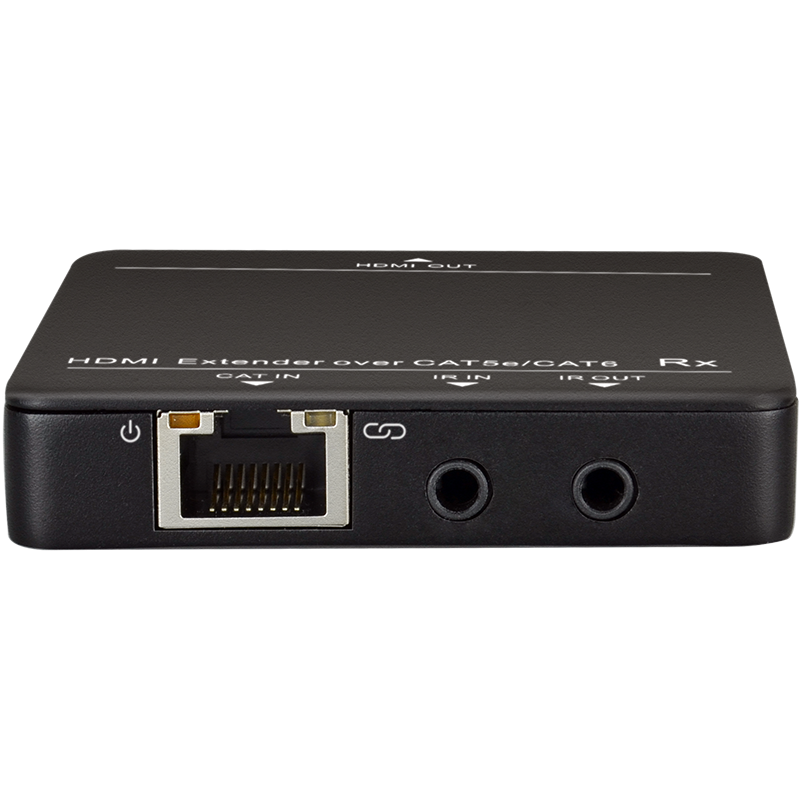

① CAT IN: RJ45 connector with Green& Yellow indicators. Connect to Transmitter over CATx cable.
② IR IN: Connect with IR Receiver.
③ IR OUT: Connect with IR Emitter.
④ HDMI OUT: Connect to display.
⑤ EQ SETTING: After the system is connected, press this button three to six times repeatedly until the best image output. When the cable, source, or display is changed, or reset the output resolution, it is need to press this button repeatedly to ensure the best image.
Specifications
Transmitter | Receiver | |
Input | (1) HDMI | (1) CAT |
Input Connector | (1) 19-pin type-A female HDMI | (1) RJ45 |
Output | (1) HDMI; (1) CAT | (1) HDMI |
Output Connector | (1) 19-pin type-A female HDMI; (1) RJ45 | (1) 19-pin type-A female HDMI |
Control | (1) IR IN; (1) IR OUT | (1) IR IN; (1) IR OUT |
Control Connector | (2) 3.5mm mini jacks | (2) 3.5mm mini jacks |
General | ||
Transmission Distance | 1080p@60Hz≤55m | |
HDMI Standard | HDMI1.4, HDCP1.4 compliant | |
EDID Management | Built-in EDID | |
Power Supply | Input: 100VAC~240VAC, 50/60Hz; Output: 5VDC 1A | |
Power Consumption | 4W (Max) | |
Work Temperature | -10~55℃ | |
Relative Humility | 10%-90% | |
Dimensions (W*H*D) | 66mm x 16.8 mm x66 mm | |
Weight | Transmitter: 36g; Receiver: 38g; |
