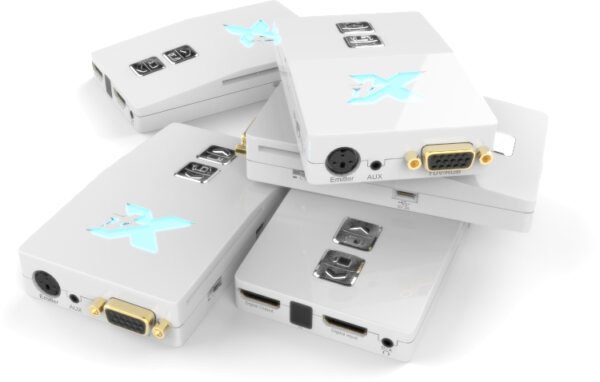

Hdfury X4

249.00

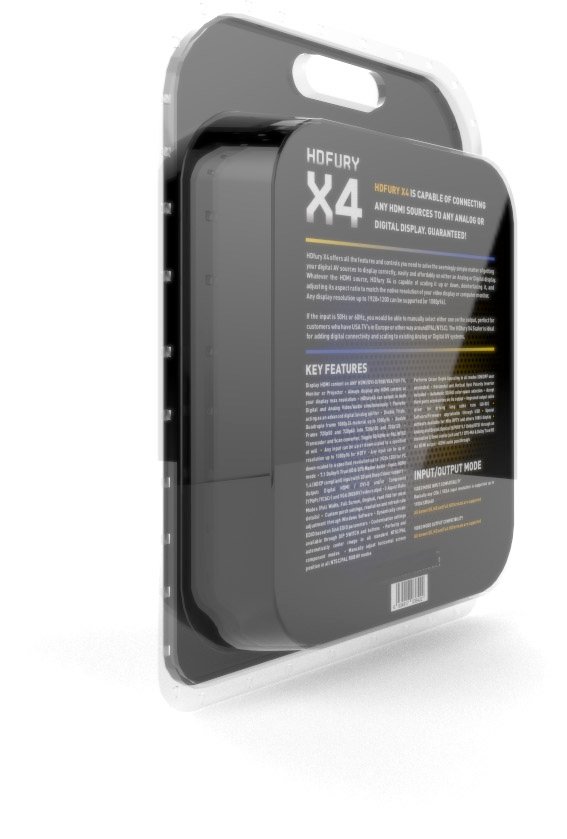

This HDMI to RGB/YUV/DVI & HDMI Kit includes: HDfury X4 Converter Component extender cable Digital Audio extender cable BNC, VGA and DB9 RGBHV extender cable Choice of power supply USB > mini USB cable

10000 disponibili

Descrizione

HDfury X4

Hdfury X4 is now capable of converting 1080p HDR to 1080p SDR for perfect streaming while gaming in 4K HDR, for ambient light solution or for capture and display needs.

The difficulty with this HDR to SDR conversion actually does not lie in the algorithmic mapping of HDR PQ signal into the SDR domain but the fact that the resulting video even when converted with just PQ conversion does not look the same on TV.

It’s clear that when an HDR tv goes into HDR mode

it activates processing that is not uniform across different TVs. the image appears somewhat different between HDR TVs based on our experiments.

Therefore, said from another point of view, what you see on HDR TV – when converted back to SDR – does not appear similar on different 1080p screens because the HDR image already was different.
Also, different HDR sources are mastered for different target nits. Some for 1100 / 1400 or 4000 or 10000 nits. Regular SDR is 300nits. So converting and scaling from a moving target into 300nits is another issue. Sometimes the image is darker and sometimes lighter.

All these taken into account the product needs a robust color processing in addition to PQ conversion. We have done just that and that’s why the delay to do it. Here is the first iteration of all the color algos + PQ conversion done and to us, they look good already.

HDfury X4 Specifications

Input

  • 1 x HDMI v1.4 (DVI 1.0 compatible)
  • 12-bit deep color HDMI native support
  • Automatic Input Format Detection: Digital YCbCr and RGB

Output

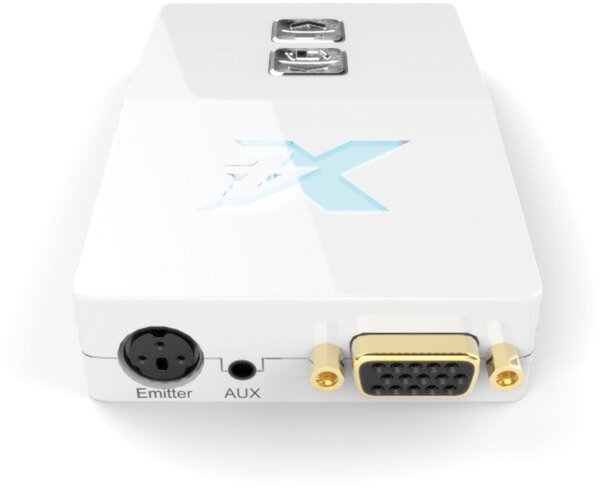

  • Digital HDMI / DVI-D and/or VGA FEMALE output connector, 10 bit analog resolution.
  • HDCP supported (Integrated HDCP decipher engine, Pre-programmed HDCP key)
  • Horizontal shift capability for RGB output mode
  • Enabled with a dip-switch, applied with push-buttons
  • Output horizontal and vertical sync polarity selector for RGB modes (dip switch)
  • Digital Output format: Either HDMI or DVI-D
  • 11-bit 225MHz DAC processing (for true 10-bit analog output)
  • Two separate Internal EDID EEPROM with complete CEA861 extension block, Dip-switch selectable
  • One EDID supports all formats
  • The other EDID is up to 1080i, and no 24Hz support (by default, reprogrammable)
  • Full BTB and WTW support in YPbPb output
  • Automatically switches color-spaces for both HDTV and SDTV
  • Precise black levels – no black crush in any standard mode
  • Integrated RGB Color Space Converter for both RGB-to-YCbCr and YCbCr-to-RGB (both 601 and 709) with true 12-bit accurate data using 14-bit processing
  • 4:2:2 <> 4:4:4 converter with 12-bit accurate data using 14-bit processing
  • Analog Output format
  • Either RGB or YPbPr, dip-switch selectable
  • YPbPr requires VGA->3RCA breakout cable
  • All HD/SDTV formats from 1080p down to 480i, NTSC and PAL
  • Including 1080p @ 72Hz PAL and NTSC (for RGB output only)
  • Including 1080p @ 24Hz PAL and NTSC

Industry-Standard Compliance

  • HDMI 1.4
  • EIA/CEA-861E
  • DVI 1.0
  • HDCP 1.1

Digital Video Input / Output

  • Dual integrated HDMI 1.4 cores
  • Supports DTV resolutions up to 1080p @ 72Hz or 720p/1080i @ 120Hz with 36-bit color depth.
  • Flexible digital video interface:- 24/30/36-bit RGB/YCbCr 4:4:4- 16/20/24-bit YCbCr 4:2:2- 8/10/12-bit YCbCr 4:2:2 (ITU-R BT.656)

Digital Audio Output

  • HDMI audio passthrough
  • Industry-standard S/PDIF output
  • Supports 2-channel 32-192kHz stereo audio
  • Supports IEC60958 2-channel PCM
  • Capable of passing IEC61937 compressed audio (5.1 Dolby® Digital, DTS, etc.)
  • 7.1 Dolby® True HD & DTS Master Audio

Dual purpose audio output connector

  • SPDIF digital output for 5.1 Dolby/DTS
  • Analog L/R 2-channel stereo
